Brand Name : LIYI
Model Number : LY-1066A
Certification : CE ISO
Place of Origin : DongGuan,China
MOQ : 1 Set
Price : 7800 US Dollars/Set
Supply Ability : 1000 Sets/Month
Packaging Details : Standard Export Wooden Case
Power : Electronic, 220V/50HZ
Accuracy level : 0.5
Capacity : 2000KG(Can up to 2T)
Dimention : 80*50*150cm
Senor : Imported high accuracy sensor
Optional parts : Lenovo computer
Operation system : TM2012
Lifting control : Computer control or manual button control
Plate Computer Control Servo System Tensile Testing Machine Wood Plate Three Point Bending Flexural Test
Application
The computer universal testing machine also known as a materials testing machine , is applicable to testing tensile stress , compressive stress , shearing force , peeling force , and elongation of materials , components , and finished product for metal , plastic , rubber , textile , synthetic chemicals , wire and cable , leather , ect.
Test Standard
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7,ect
| Capacity | 5,10,20,50,100,200,500,1000,2000, optional(Can customized to 5000KG,1T,2T) |
| Stroke | 800mm(not including fixture) |
| Test Speed | 50~500mm/min(control by keyboard inputing) |
| Test range | 320mm MAX |
| Dimention | 80*50*150CM |
| Weight | 90kg |
| Accuracy | ±0.5%or better |
| Operation method | computer control |
| Resolution | 1/150,000 |
| Motor | Panasonic servo motor |
| Operation system | TM2101 |
| Accessories | customized clamps by appointed, force sensors,printer, and operation manual |
| Power | 220V/50HZ |
Safety device:
Stop way: the upper and lower limit safety set, the emergency stop button, strength and elongation elongation program set, the specimens are damaged sensor.
Characteristics
 1. The structure of equipment for fiber tensile strength testing is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. equipment for fiber tensile strength testing use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.

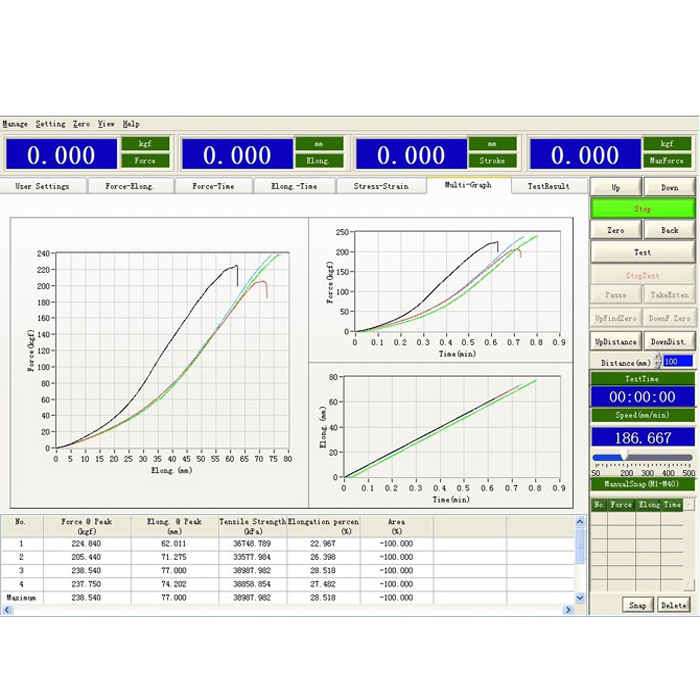

3. equipment for fiber tensile strength testing use the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

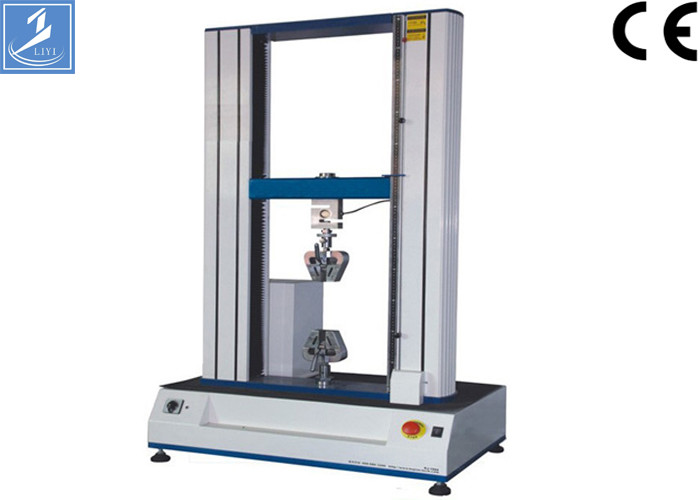

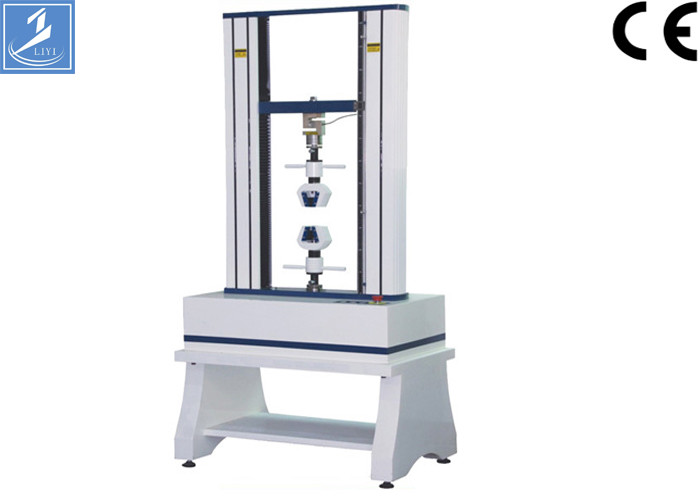

Product Picture:





One Pair of Clamps(Grips) for free

|   |
| Plate Computer Control Servo System Tensile Testing Machine Wood Plate Three Point Bending Flexural Test Images |
