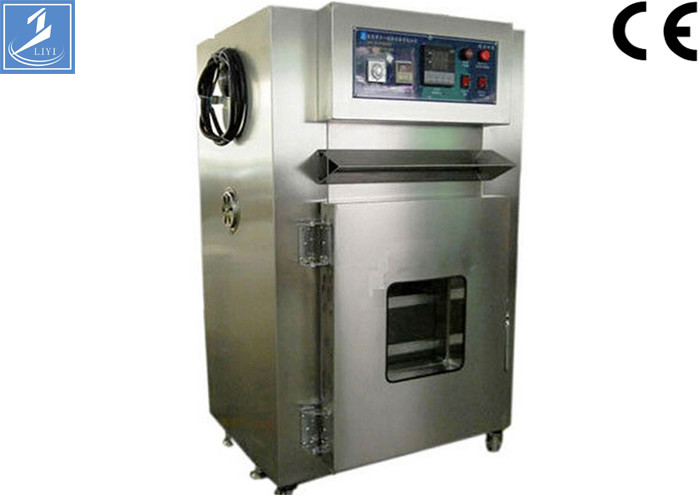

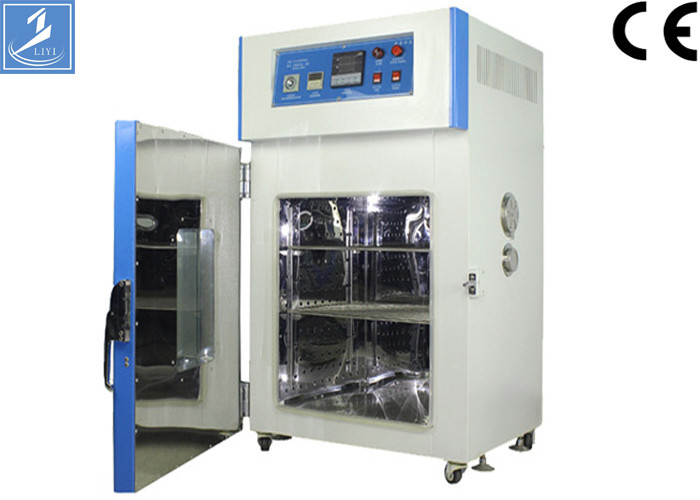

Environmental Hot Air Precision Industrial Oven Chamber For Plastic Testing Machine
Uses:
This machine can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing . It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.
Characteristics:
1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. Use new high temperature resistant long shaft motor
3. Turbine fan.
4.Silicone forced tight
5.Overtemperature protection, super load automatic power system.
6.Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8.The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function.
9.Timer: temperature to time, when the power failure alarm indication.
10.According to customer demand matching glass window can be customized according to customer specifications specified.
Specifications:
| Model | Inner Size W*H*D(cm) | External Size W*H*D(cm) | Temperature Range(°C) | Heating up Time | Accuracy (°C) | Uniformity (°C) | Power | Rate of work (kw) |
| LY-645 | 45×40×40 | 66×92×55 | (A-D) A:200°C B:300°C C:400°C D:500°C | RT~100°C About 10min | ±0.3 | ±1% | 220V Or 380V | 3.5 |
| LY-660 | 50×60×50 | 70×125×65 | ±0.3 | ±1% | 4.5 |
| LY-690 | 60×90×50 | 80×156×65 | ±0.3 | ±1% | 5.5 |
| LY-6100 | 80×100×60 | 100×166×75 | ±0.3 | ±1% | 8 |
| LY-6120 | 90×120×60 | 110×186×75 | ±0.3 | ±1% | 10 |
| LY-6140 | 140×120×60 | 160×186×75 | ±0.3 | ±1% | 12 |
| LY-6160 | 160×140×80 | 180×206×97 | ±0.3 | ±1% | 14 |
| LY-6180 | 180×140×100 | 200×200×118 | ±0.3 | ±1% | 16 |
Air supply system:
1. Forced convection level supply air circulation, the motor runs circulatorilily to drive wind wheel to electric heaters rotor,send the hot wind into the oven and then in-halt it to air passage after using to be air source again, thus reduce heat cycle energy loss and ensure the uniform temperature.When opening or closing the door may cause disturbance action this system can be used to recover temperature operation conditions quickly.
2. The motor is imported from Taiwan witch have long axis and can endure high temperature.
3. The fan is a multipage turbine in high strength, equipped with adjustable diversion within the boards witch can make the wind road runs smoothly.
Accessories:
1. Over-temperature protection, No welding wire switch,fuse, Motor over load relay.
2. Timer: 9999s~9999h(can exchange H,M,S and set the place of decimal point)
Product Pictures:
